Description

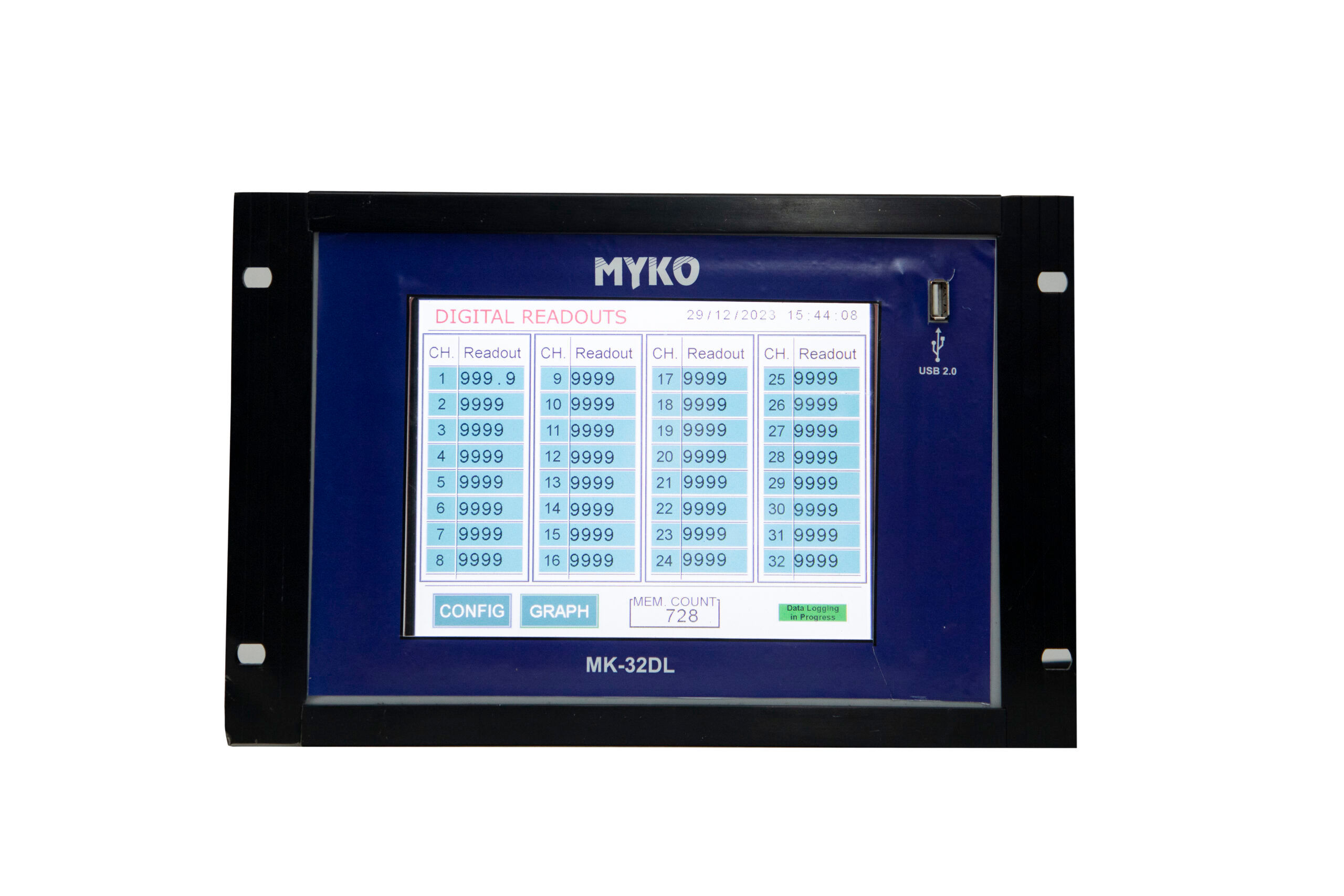

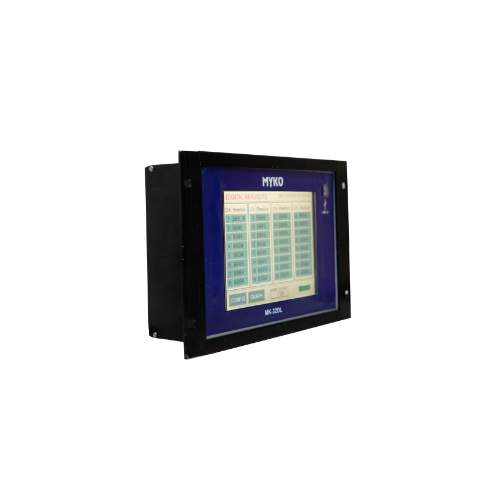

32 Channel Data logger
Model : MK-DL32
Input : 32 universal analog inputs (RTD, Thermocouple
0 – 10 VDC, 0 – 20 mA or 4 – 20
mA Signal Inputs)
Accuracy : 0.1% FSD of range
Internal Memory : 4 M bits
(1 to 112000 readings)
Display : 7.5 inch multicolor TFT graphical
display with CCFL/LED backlit
(Touch screen)
Resolution : 640 X 480 pixels
Serial Communication port : RS-232 or
RS-485 Factory setted.
Operating Temperature : -20 to 55°C
Dimensions : W-300 X H-195 X D-115 mm
Panel Cutout : W-257 X H-175 mm
